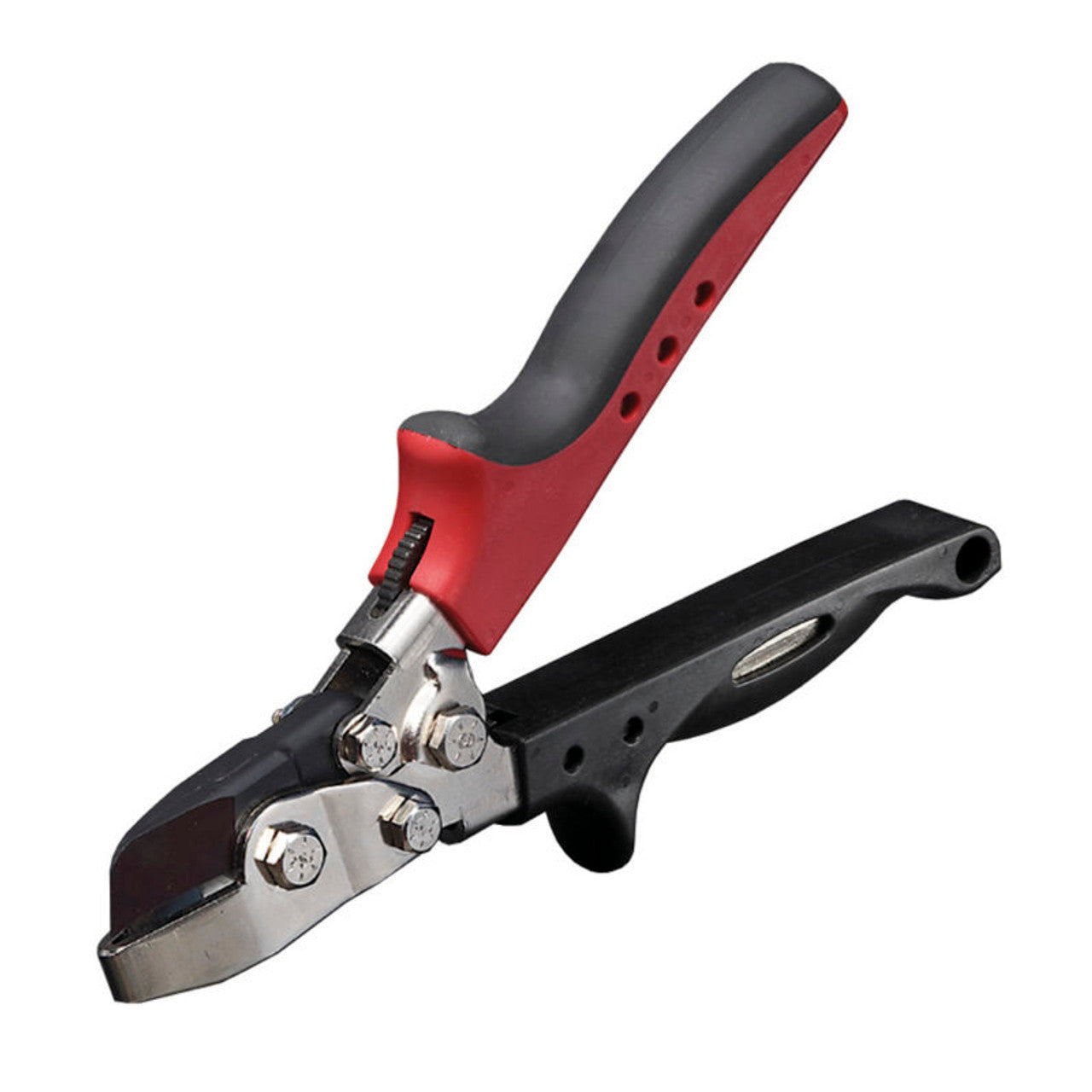

Malco 1in V-Notch Hand Notcher

The Malco 1in V-Notch Hand Notcher, expertly designed for metal folding and fabrication, enables a full 1-inch deep 'V' notch in 24-gauge galvanized or mild steel. It boasts long-lasting, precision-ground components with rust-resistant finishes. The tool ensures clean 30° 'V' cuts and a maximum throat depth of 13/16 inch. Its unique hook design aids in notching corners or tabs to desired depths without slipping.

Incorporating ergonomic RedLine Handle technology, it supports the user's natural power stroke, leveraging a 7:1 mechanical advantage. The comfortable grip contours, non-slip grip insert, and thumb-operated handle latch ensure easy one-hand operation for all-day efficiency on the job.

FEATURES:

• More clearance for corner notches in ductwork.
• N2R model makes 1-inch (25.4 mm) deep, V in shaped cuts in 24-gauge (0.71 mm) Galvanized steel.
• Compound leverage produces 7 to 1 mechanical advantage.
• Ergonomic Redline Handles won't wear you down.
• Variable Leverage Ratio (High/Low) Throughout Stroke: 6.6 to 1.0 - 7.0 to 1.0
• Jaws: Investment Casting/Carbon Steel Shell
• Throat Depth: 13/16in (20.6mm)
• Length: 8in (203mm)
• Aluminum: 0.035in (0.89 mm)
• Copper: 0.023in (0.58 mm)
• Stainless Steel 26 Gauge: 0.018in (0.46 mm)
• Galvanized Steel 24 Gauge: 0.028in (0.71 mm)
• Mild Steel 24 Gauge: 0.024in (0.61 mm)
