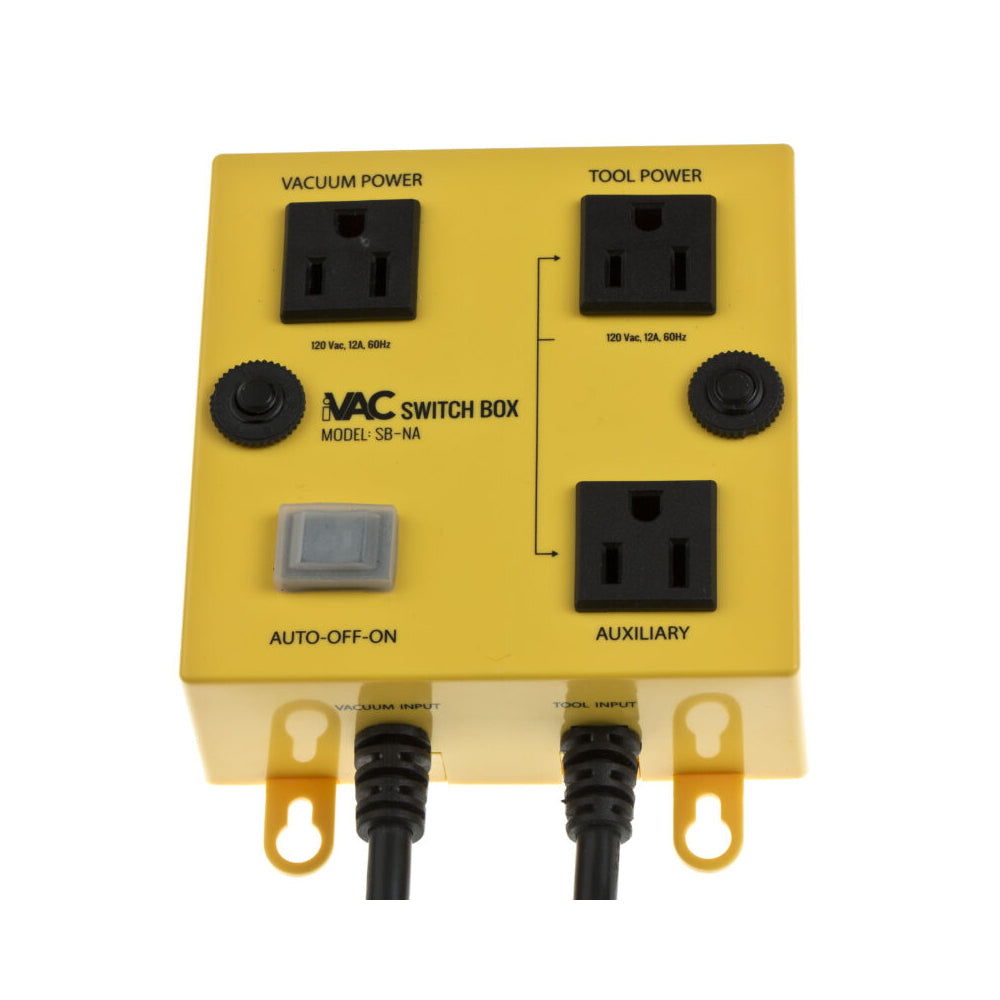

iVac Dust Collector Switch Box

The iVAC Dust Collector Switch Box is a simple automated dust control solution that turns your shop vacuum on automatically whenever your connected 115V power tool starts. Designed for home workshops and DIY use, it helps collect dust and debris at the source for a cleaner, safer work area while also reducing cleanup time.

FEATURES:

• Automatically powers a shop-vac style vacuum when a connected 115V power tool is turned on
• Fully certified and approved with TUV safety approval, conforms to UL STD 244A, and is certified to CSA STDC22.2 No. 14
• Three operating modes: Auto, Off, and On
• Turn-on delay helps avoid tripped circuit breakers during startup
• Turn-off delay keeps the vacuum running for approximately 6 seconds after the tool stops to help clear remaining dust and debris
• Dual inputs allow operation from one or two separately protected 115V AC mains circuits when combined tool and vacuum load eXCeeds 15 amps
• Both power cords are individually protected with 15 amp circuit breakers
• Compatible with 115V power tools and shop-vac style vacuums up to 6.5 peak HP or dust collectors up to 1 HP
• Simple plug-in installation with no special tools or electrical knowledge required

SPECIFICATIONS:

• Operates from one or two 115VAC 15 amp mains circuits
• Power tool receptacle rated at 115VAC 15 amps, limited by a 15 amp circuit breaker
• Vacuum receptacle rated at 115VAC; dust collector should not eXCeed 1 HP or 6.5 peak HP, limited by a 15 amp circuit breaker
• Turn-on delay in Auto mode: 0.5 to 2.0 seconds
• Turn-off delay in Auto mode: approximately 6.0 seconds
• Turn-on tool current threshold in Auto mode: 0.3 amps
• Plastic housing dimensions: 4.625in x 4.625in x 1.875in
• Housing material: ABS 94VO
• Tool power cord length: 54in
• Vacuum power cord length: 19.5in
