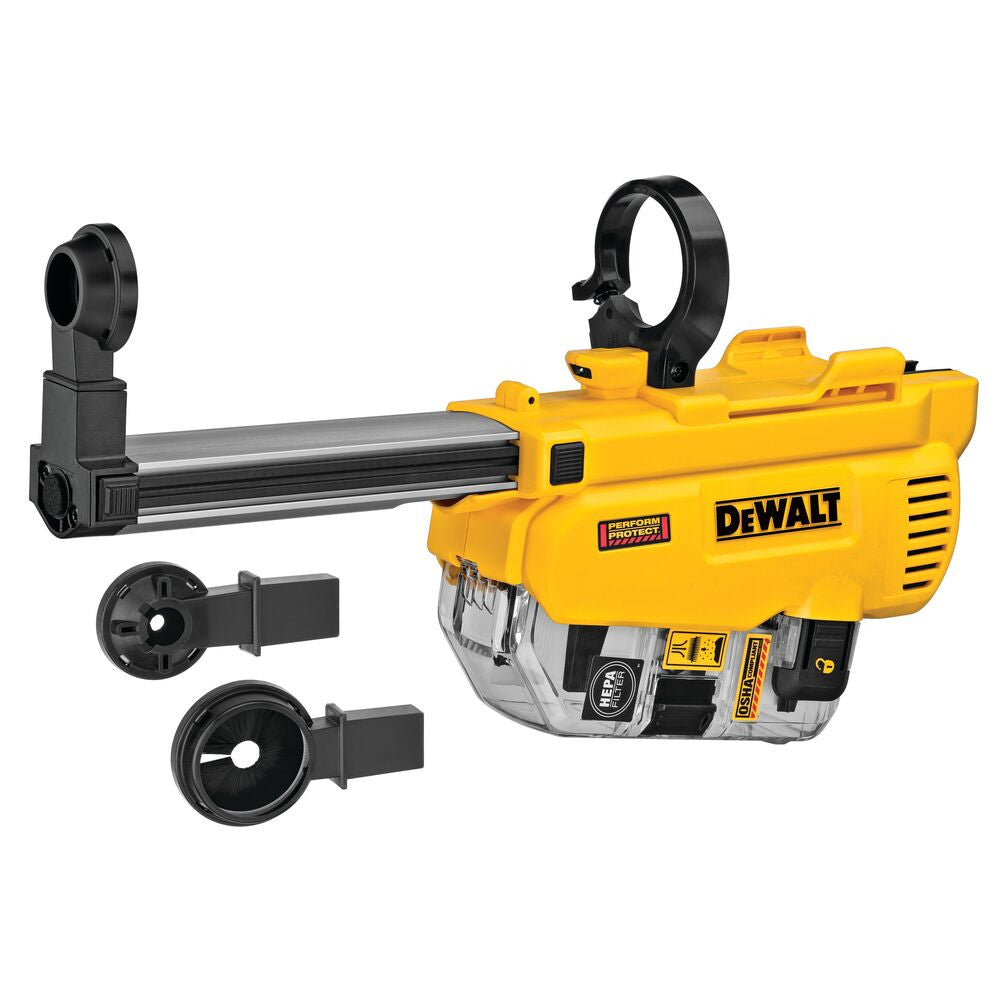

DeWalt DWH205DH Dust Extractor for 1-1/8in SDS Plus D-Handle Rotary Hammers

Ensure OSHA-compliant dust extraction with this high-performance Table 1 OSHA 1926.1153-compliant Onboard Dust Extractor, designed for seamless integration with the DeWalt DCH263 1-1/8in D-Handle Rotary Hammer. It features features a powerful built in motor for increased suction and high-performance drilling. Its HEPA filter with automatic cleaning removes 99.97% of airborne particles 0.3 microns or larger, while three specialized nozzles accommodate bit sizes up to 1 in, 1.5 in, and 0.5 in. Supporting bit lengths up to 10 in, it enables efficient anchor installations, including pinch nails, rod-hanging systems, and large-diameter anchors. A 2-second power-off delay ensures dust extraction continues after drilling stops, and its compact 3.72in inline design provides an unobtrusive fit for seamless dust collection.

FEATURES:

• Table 1 OSHA 1926.1153-compliant dust management solution for 1-1/8in SDS Plus rotary hammers.
• Three Replaceable Optimized Dust Nozzle Heads for maximum dust collection during the application.
• Bit lengths up to 10in in overall length.
• Each head is tuned for up to 1in dia bits, all stop bits up to 1.5in shoulder and small dia bits up to 0.5 in
• Built-In Motor for increased suction and high-performance drilling.
• Compact Inline Design is only 3.72in wide when installed.
• Two-Second Power-Off Delay ensures dust extraction continues after the drill is switched off.
• Clear, Durable Dust Box ensures users can see when the dust box needs to be emptied.
• Replaceable HEPA cannister removes 99.97% of airborne particle 0.3 microns or greater.
• Quick Release for easy tool assembly and disassembly.
• Mounted LED for illuminating low light work environments.
• Easily adjustable depth stop for accurate anchor drilling.

INCLUDES:

• DWH205DH Dust Extractor for 1-1/8in SDS Plus D-Handle Rotary Hammers
• DWH302DH Dust Extraction Filter Assembly,
• Small Diameter Head
• Standard Diameter Head
• Stop Bit Head
