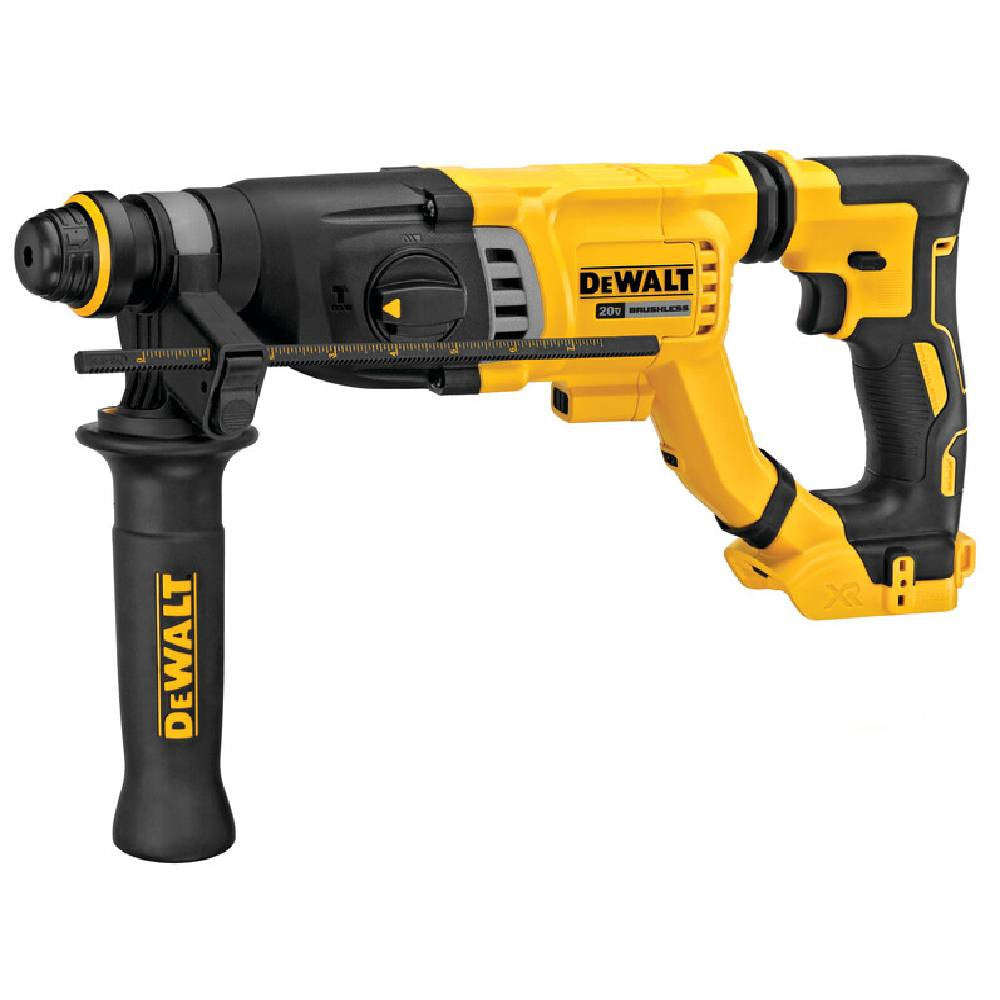

DeWalt DCH263B 20V MAX Cordless Brushless 1-1/8in SDS Plus D-Handle Rotary Hammer (Tool Only)

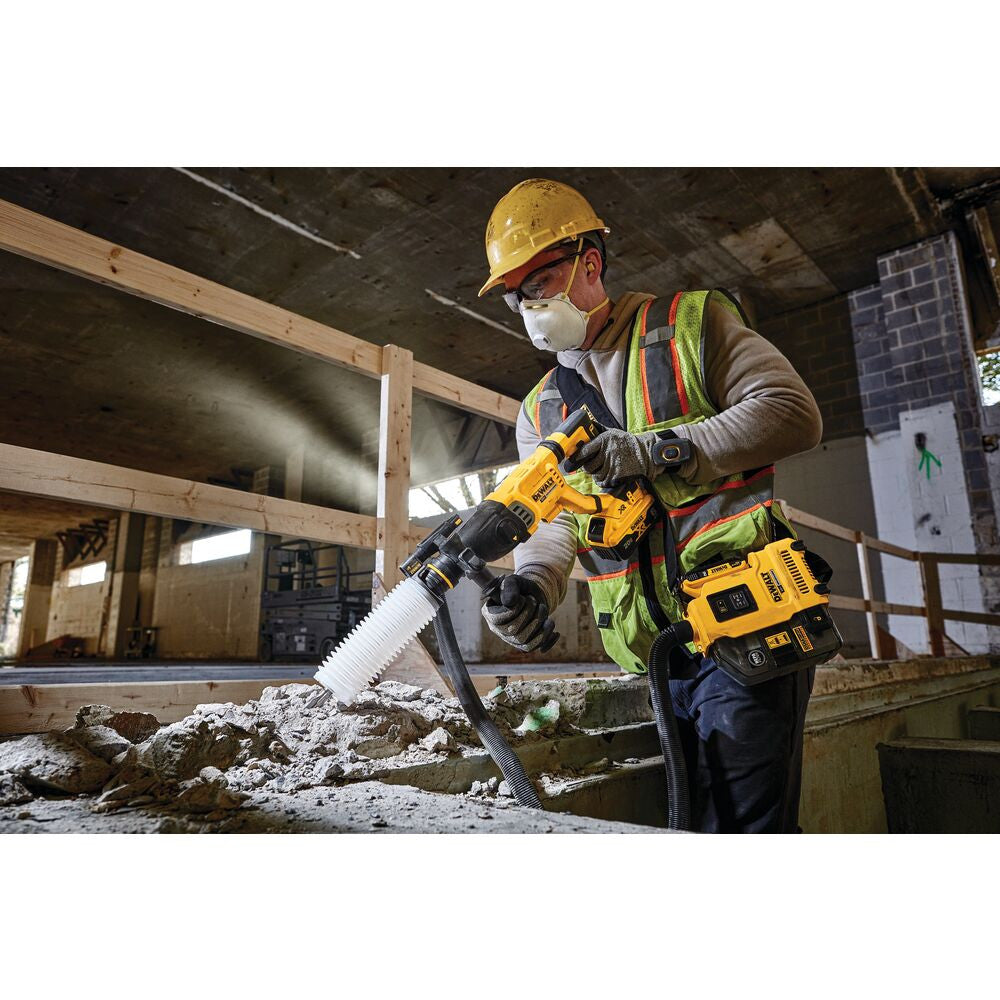

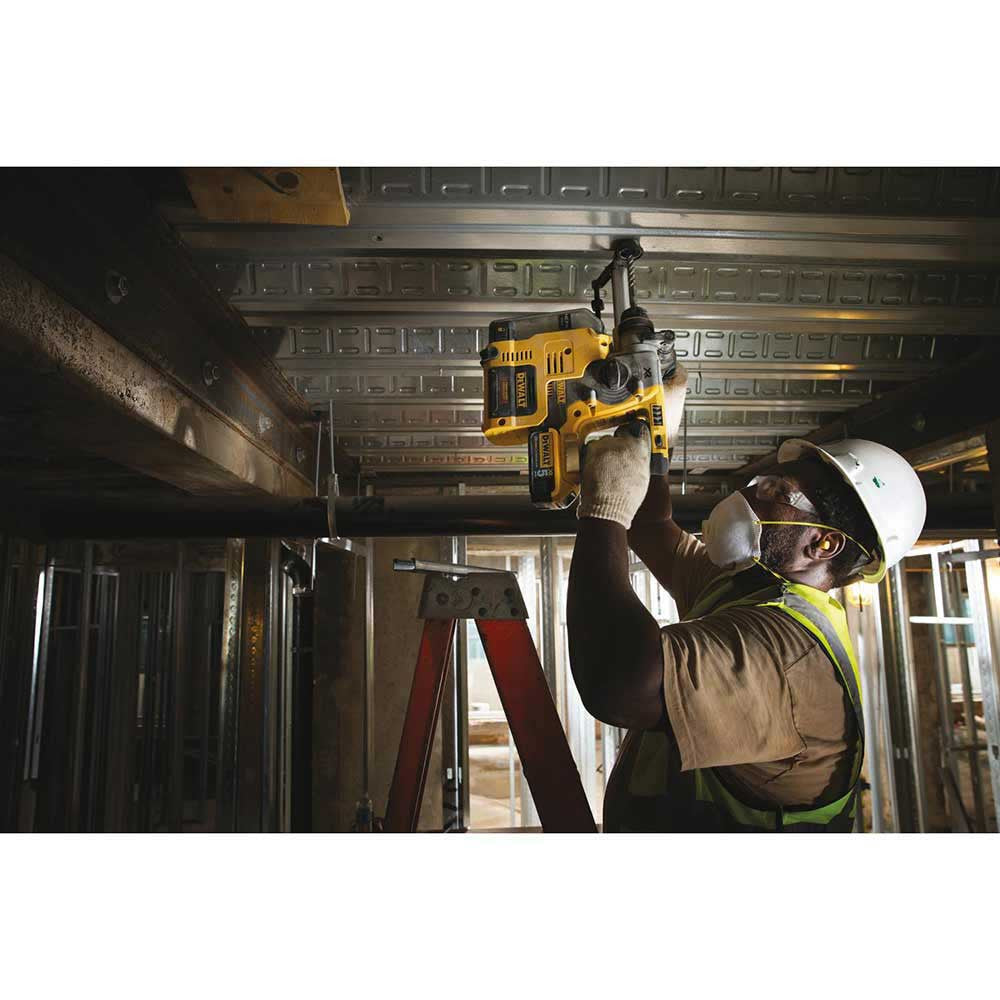

The 20V MAX 1-1/8in Rotary Hammer is a high-performance drill powered by a brushless motor and a durable 3-mode German-engineered mechanism, delivering 3 Joules of impact energy. Lightweight design makes this tool ideal for forming, #3 to #5 post-installed rebar dowelling, tilt-wall support, rod hanging, beam & column anchorage, and steel stanchion mounting. It is part of the Perform and Protect product line, integrated with the Shocks Active Vibration Control System, and becomes OSHA Table 1 Compliant when used with the DWH303DH On-Board Extractor (sold separately).

FEATURES:

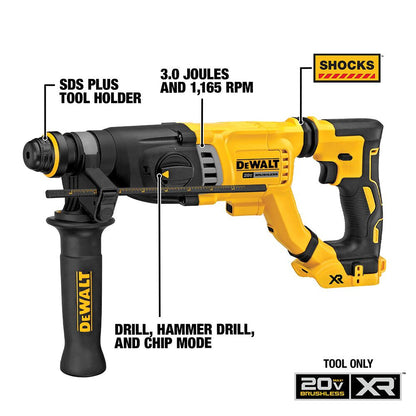

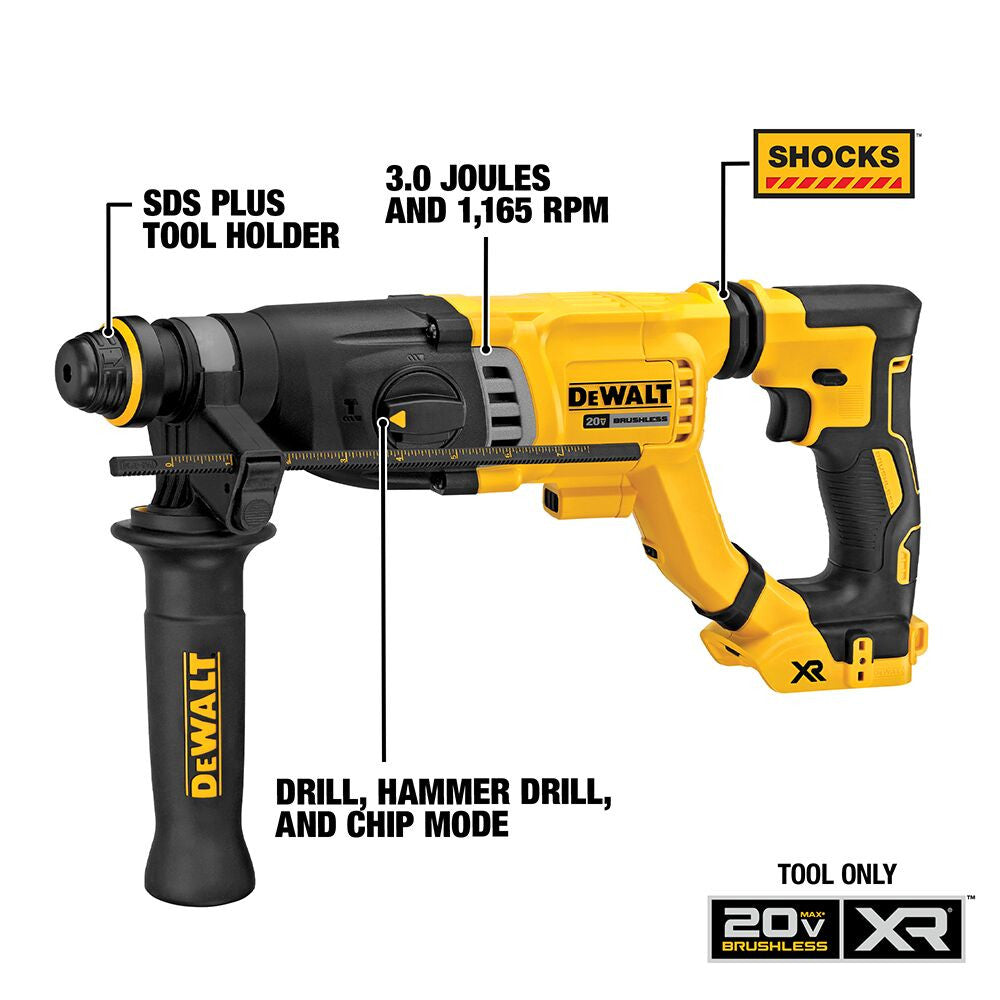

• 3 Joules of impact energy for fast drilling in concrete
• Shocks Active Vibration Control System reduces vibration felt by the user at the handles, compared to rotary hammers without this feature
• Lightweight design makes this tool ideal for forming, #3 to #5 post-installed rebar dowelling, tilt-wall support, rod hanging, beam & column anchorage, and steel stanchion mounting
• Brushless motor and durable German-engineered mechanism for efficient performance and runtime.
• Rotating Dial to set the tool to a specific application mode - Drill, Hammer Drill, or Chip
• 0 - 4,300 BPM (Blows Per Minute)
• 0 - 1,165 RPM No-Load Speed
• Optimal concrete drilling: 1/4 - 3/4 in.
• Vibration measurement: 9.1 m/s²

TECHNICAL SPECIFICATIONS:

• Power Source: 20 Volt-max Cordless
• Accessory Connector Type & Size: Keyless SDS-Plus chuck
• Power:

  • RPM: 0 - 1,165
  • BPM: 0 - 4,300
  • Impact energy: 2.2 ft-lbs
• Drill bit capacity:

  • Twist bit: 1-1/8 in
  • Core bit: 2-1/2 in
• Tool Weight: 5.9 lbs.

INCLUDES:

• DCH263 20V MAX 1-1/8in Brushless SDS Plus Rotary Hammer (Tool Only)
• 360° Side handle
• Depth rod
