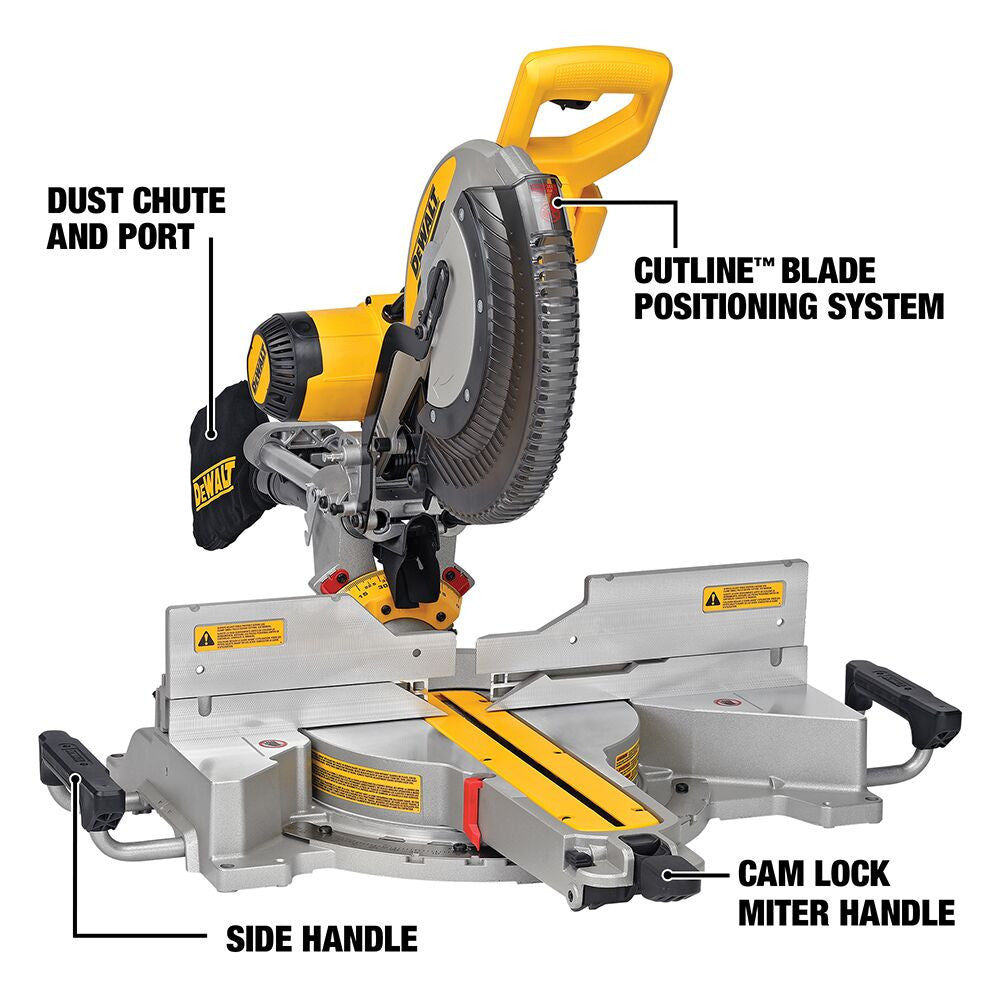

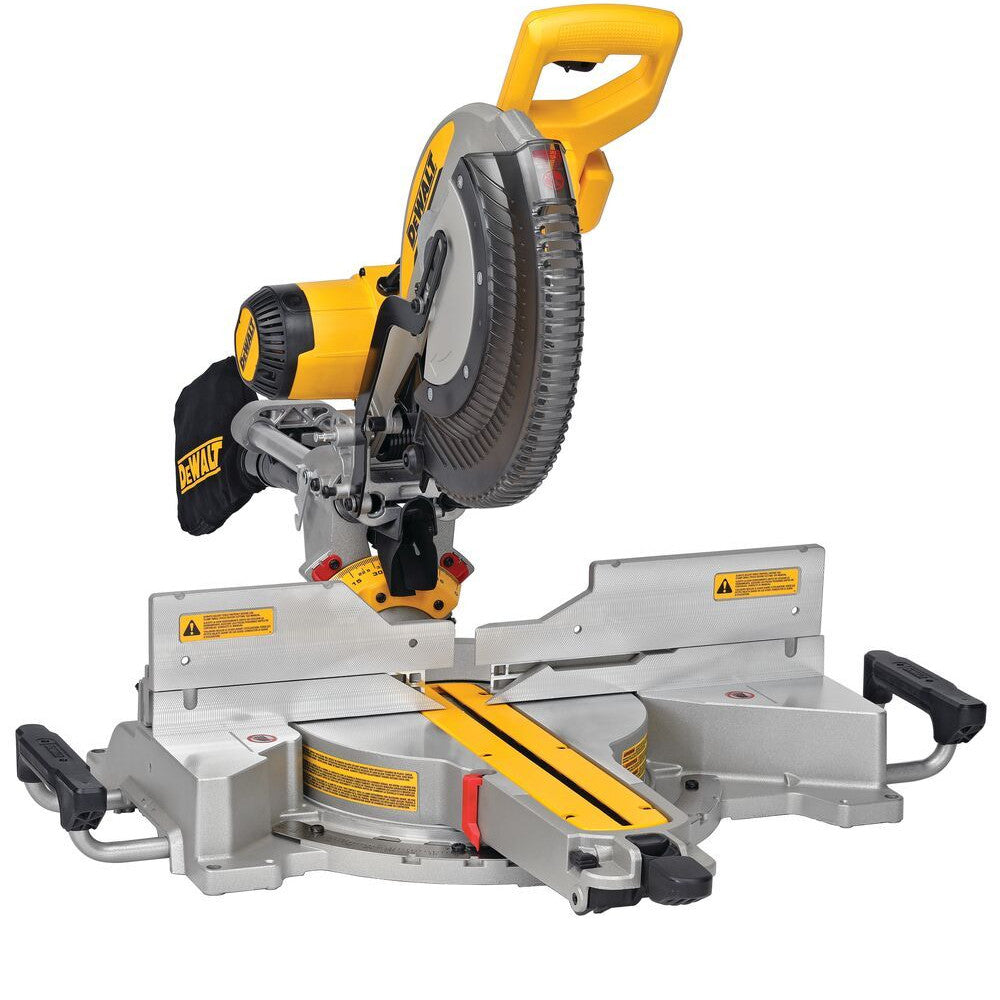

DeWalt DWS780 15 Amp 12in Double Bevel Sliding Compound Mitre Saw

This 12in Double Bevel Sliding Compound Miter Saw delivers power, capacity, and accuracy in a compact tool. The powerful 15 Amp, 3,800 RPM motor drives an ultra-precise mitre system that delivers cutting accuracy at virtually any cut angle. It features an integrated XPS cross-cut positioning system to provide an adjustment-free cut-line indication for better accuracy and visibility. With a back fence design, it cuts up to 2 inx14in dimensional lumber cross-cuts at 90° and 2 inx10in at 45°. Its tall, telescoping fence supports crown molding up to 7-1/2in nested, base molding up to 6-3/4in vertically against the fence, and easily slides out of the way for bevel cuts up to 49° left or right on both sides of the blade.

FEATURES:

• 15 amp motor delivers 3,800 RPM providing enough power to cut framing and finishing applications
• Miter capacity of 50 degrees to the left and 60 degrees to the right, increasing versatility
• Capable of beveling up to 49 degrees in both left and right directions with oversized, high visibility bevel scale with positive stops offering maximum versatility

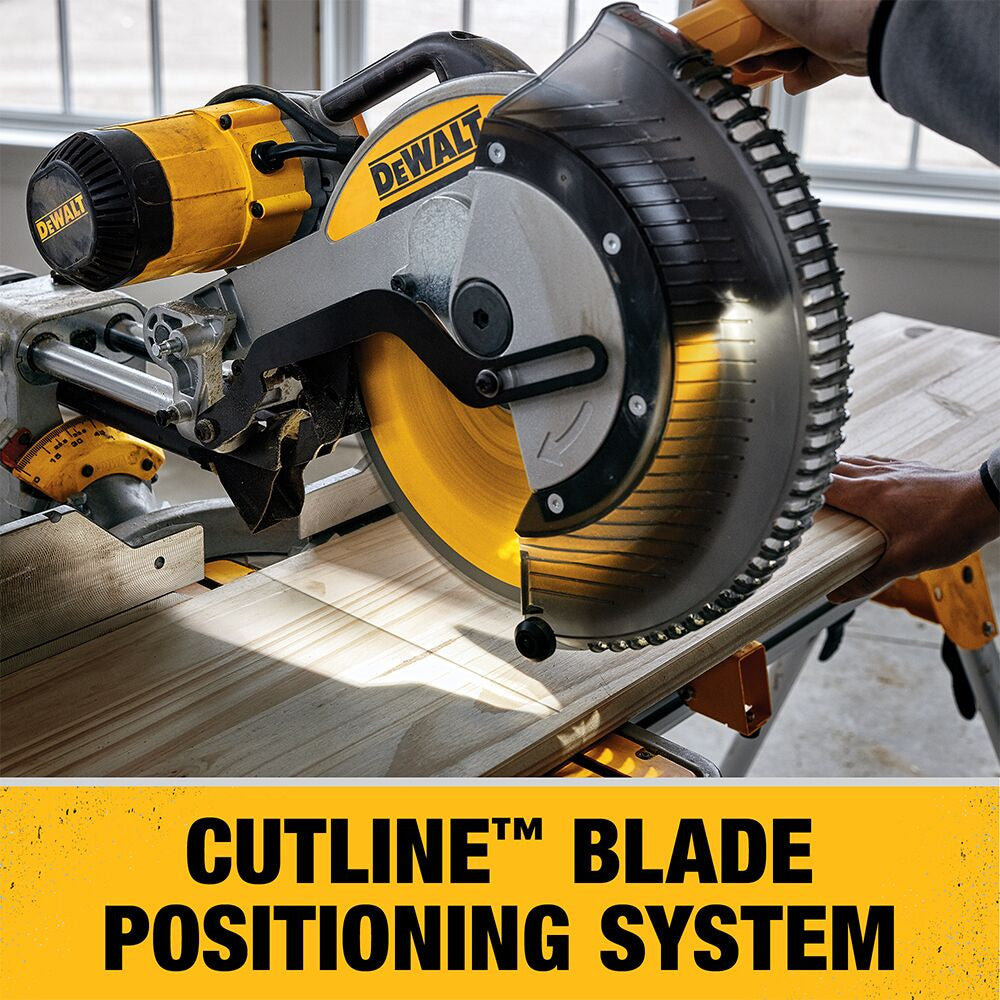

• Internal CUTLINE blade positioning system creates adjustment-free cut line indication for better accuracy and visibility
• Innovative gearbox and belt-drive design increases vertical cutting capacity
• Adjustable stainless-steel miter detent plate with 10 positive stops, ensuring accurate and repeatable cuts

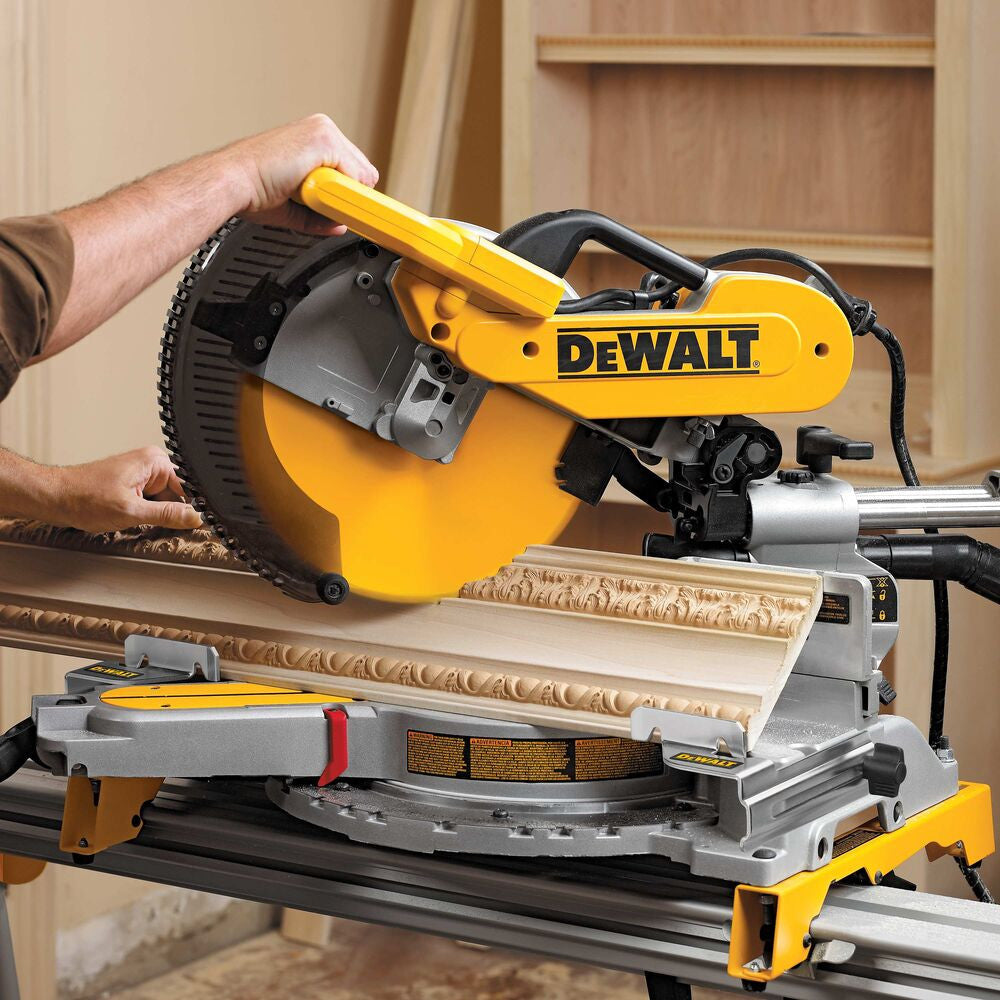

• Tall sliding fences support crown molding up to 7-1/2in nested and base molding up to 6-3/4in vertically against the fence

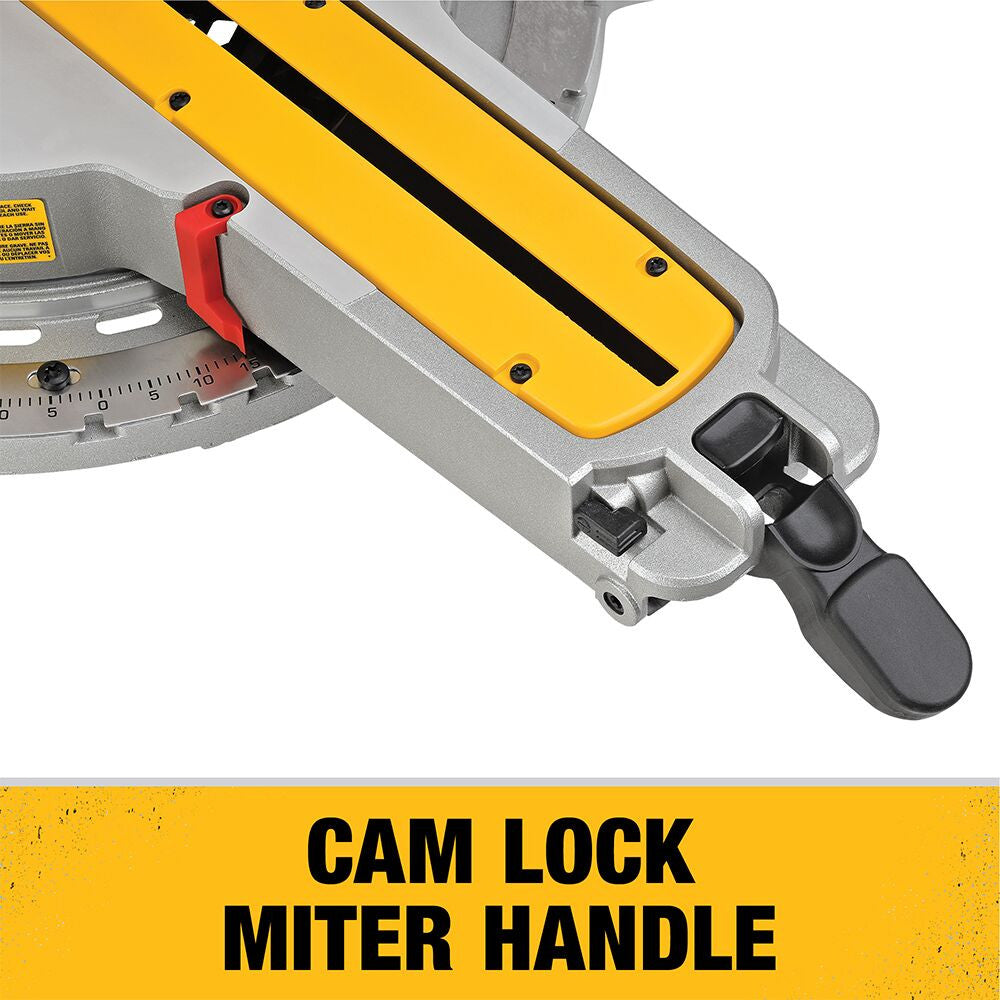

• Integrated Cam-lock miter handle with detent override ensures quick and accurate miter angles
• Constructed with dual horizontal steel rails with an innovative clamping mechanism and linear ball bearings for accuracy and durability

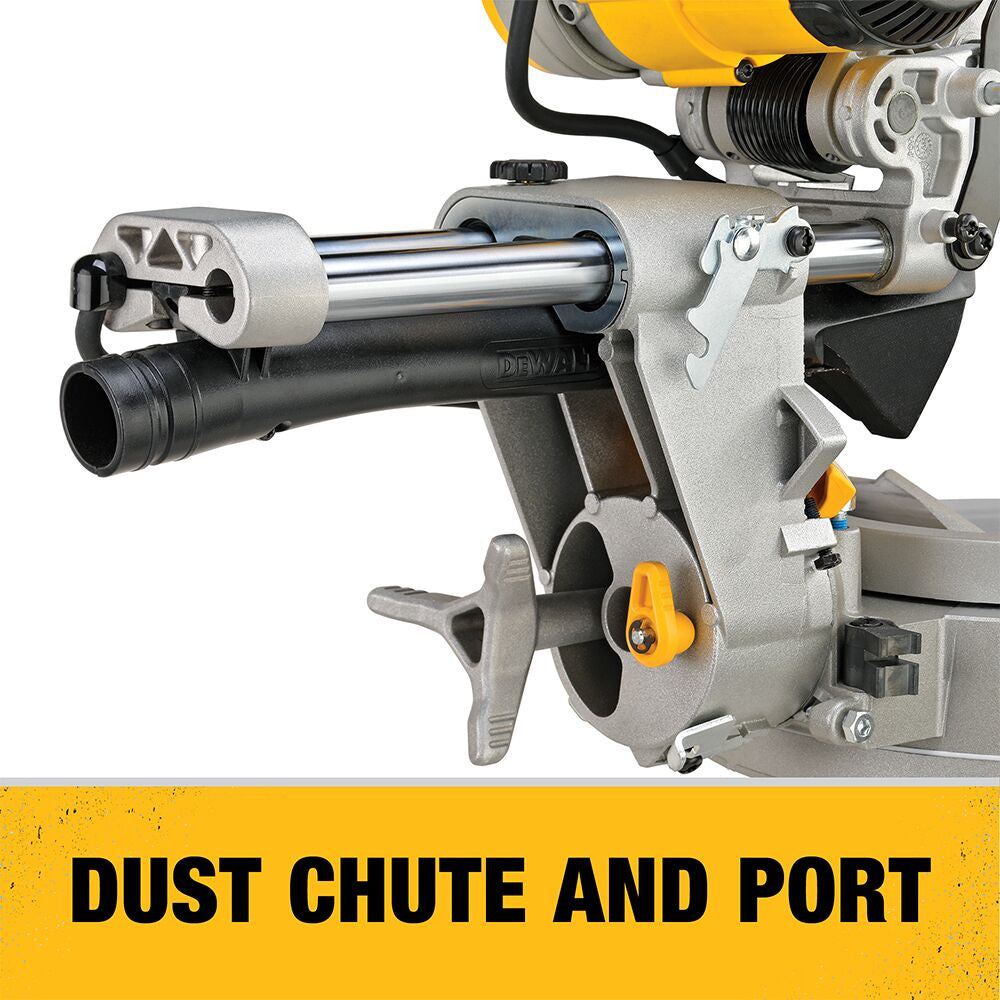

• Equipped dust collection system that efficiently captures over 75% of dust generated during use
• Compact and lightweight design allows for easy transportation and storage

SPECIFICATIONS:

• Power Source: 15.0 Amp
• Accessory Connector Type: 1in arbor
• Power:

  • RPM: 3,800
• Miter Range:

  • Right: 0 - 60 Degrees
  • Left: 0 - 50 Degrees
• Bevel Range:

  • Right: 0 - 49 Degrees
  • Left: 0 - 49 Degrees
• Cutting Capacity:

  • 0-degree Miter & Bevel: 4-3/8in X 13-3/4 in
  • 45-degree Miter: 4-3/8in X 9-5/8 in
  • 45-degree Bevel Right: 2-1/4in X 13-3/4 in
  • 45-degree Bevel Left: 3-1/8in X 13-3/4 in
• Weight: 56.0 lbs

INCLUDES:

• DWS780 12in Double Bevel Sliding Compound Miter Saw
• 12in (305 mm) diameter saw blade
• Blade wrench
• Dust bag
• Material clamp
