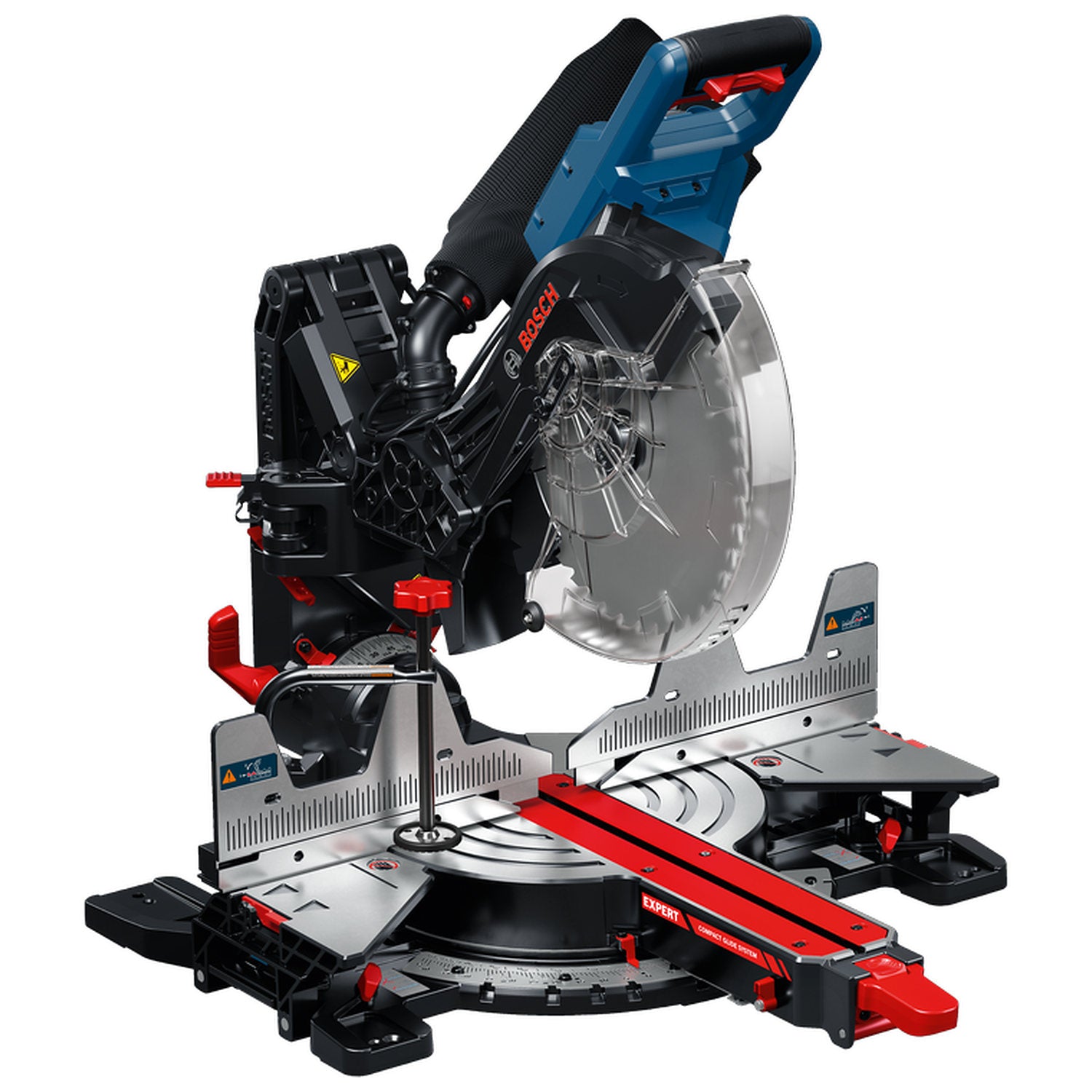

Bosch EXCM341-305GD 15 Amp EXPERT 12in Dual-Bevel Glide Mitre Saw

The corded EXPERT 12-Inch Dual-Bevel Glide Mitre Saw delivers smooth cutting performance, exceptional accuracy, and a space-saving design with Bosch's exclusive Compact Glide System. Engineered for professional applications, this power saw provides a large cutting capacity of up to 13-7/16 inch horizontally and 4-1/8 inch vertically, making it ideal for dimensional lumber, trim, and moulding. The dual-bevel design allows bevel cuts up to 47 degrees left and right, while the mitre range extends 52 degrees left and 60 degrees right for maximum versatility. A Shadow LED Cutline provides an accurate cut guide without adjustment, while integrated base extensions and built-in length stops offer superior material support for repetitive cuts. Enhanced dust management with a large dust chute helps maintain a cleaner work area, making this saw an excellent choice for professional finish carpenters, cabinet installers, and contractors.

FEATURES:

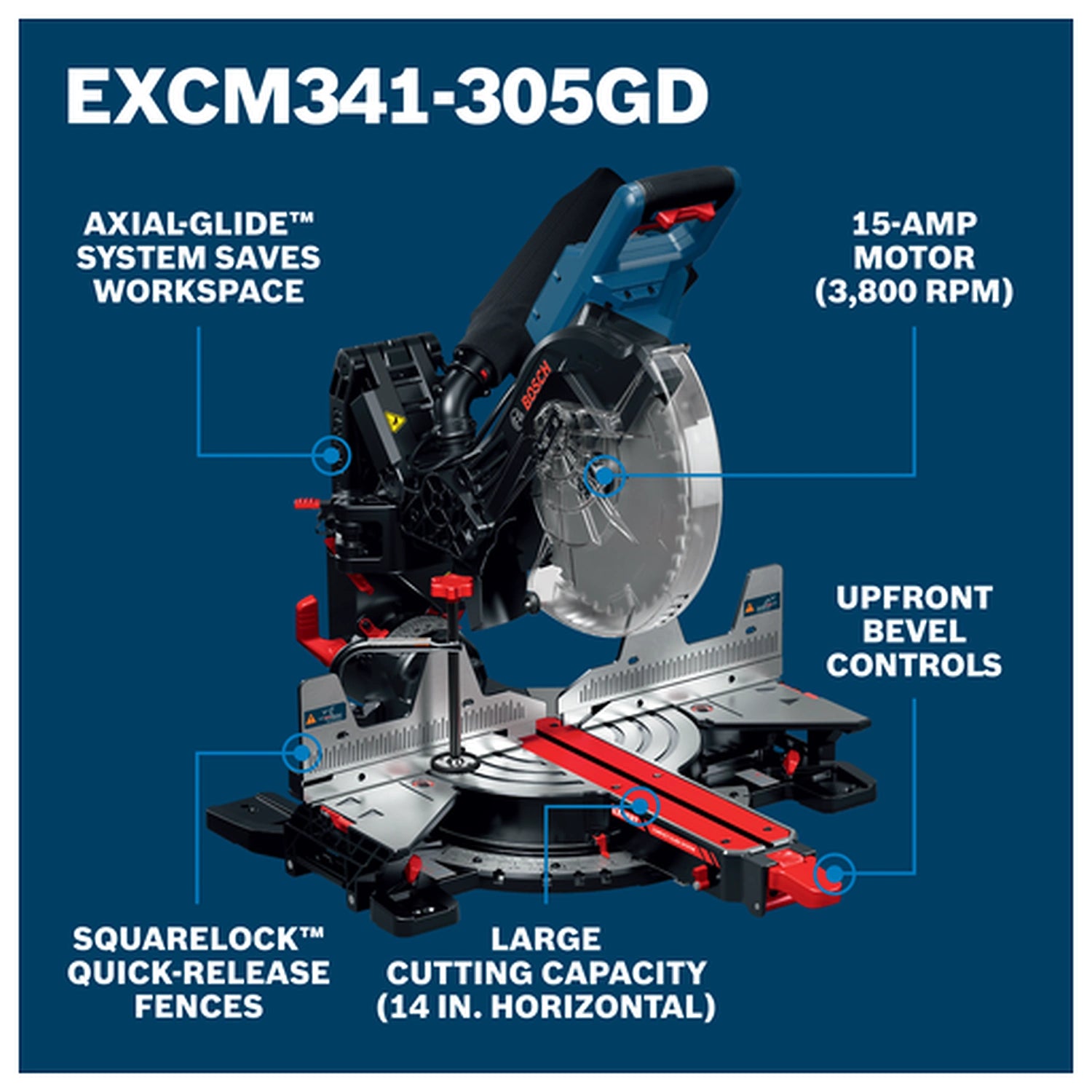

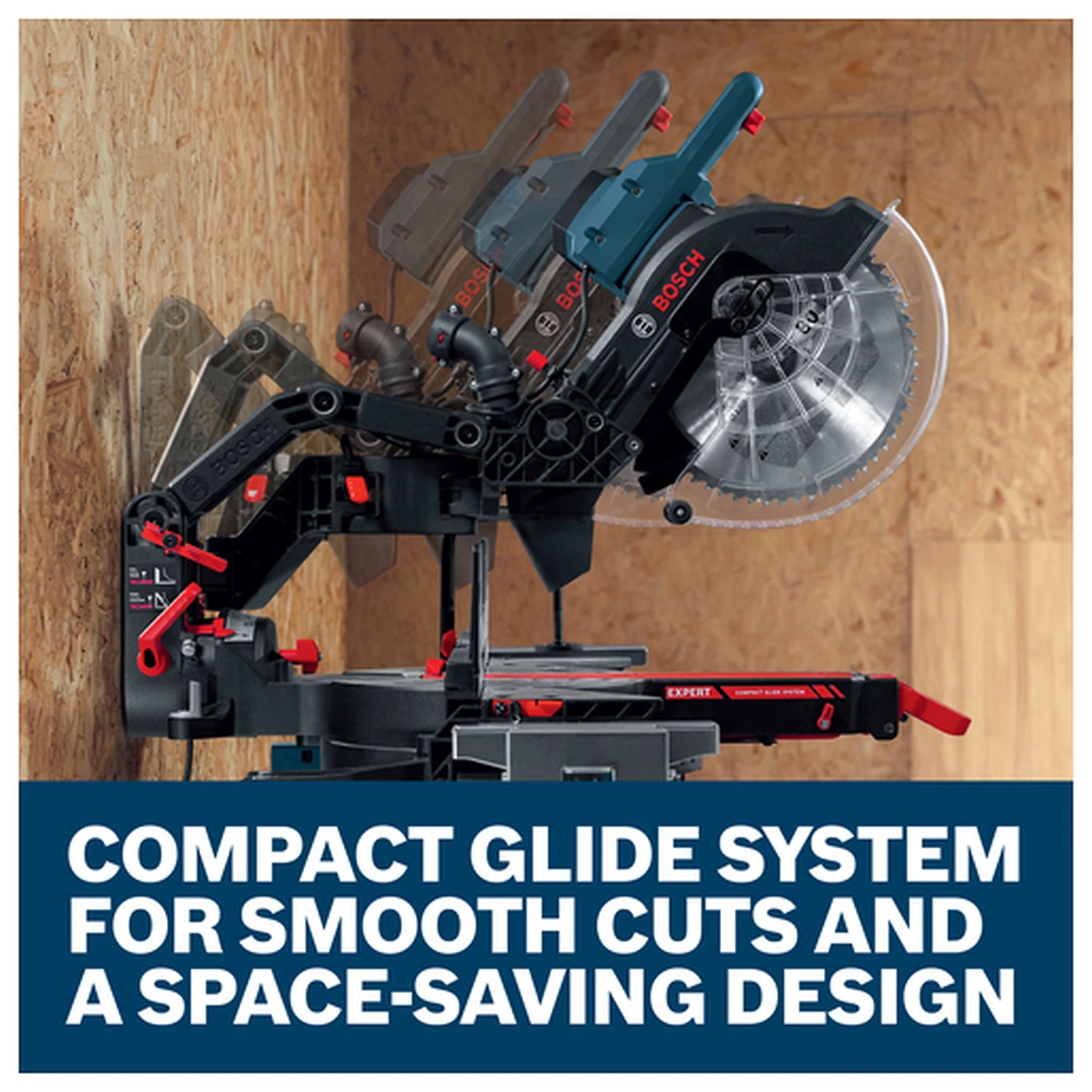

• Bosch-exclusive Compact Glide System provides smooth cutting action, durable precision, and a space-saving design

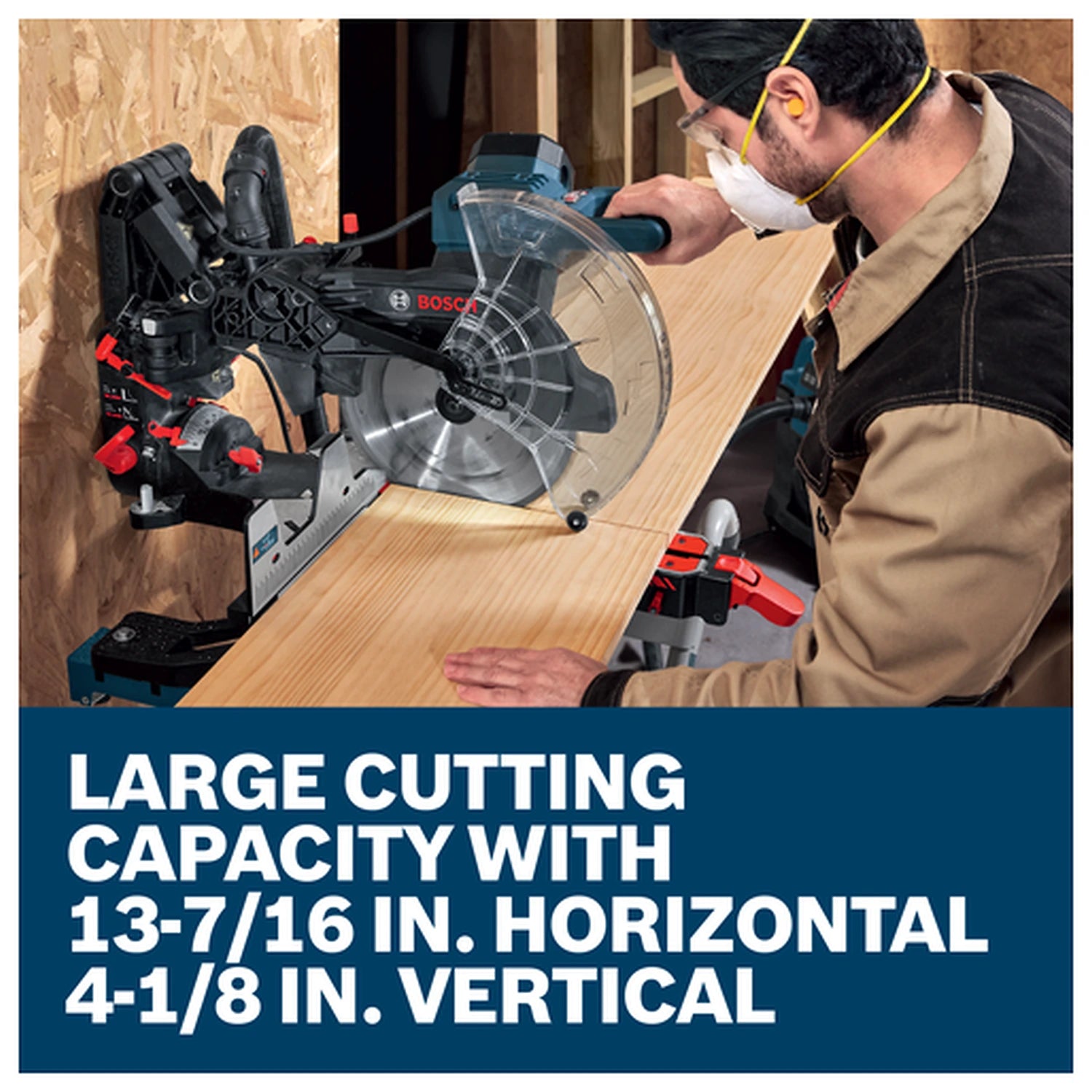

• Large cutting capacity handles materials up to 13-7/16 inch wide and 4-1/8 inch tall
• Cuts up to 7-inch base moulding vertically against the fence
• Cuts up to 6-3/4 inch crown moulding at 38 degree spring angle and 7-1/2 inch crown moulding at 45 degree spring angle against the fence
• Cuts up to 11-inch crown moulding laid flat on the table
• 47 degree dual-bevel capability allows compound cuts in both directions

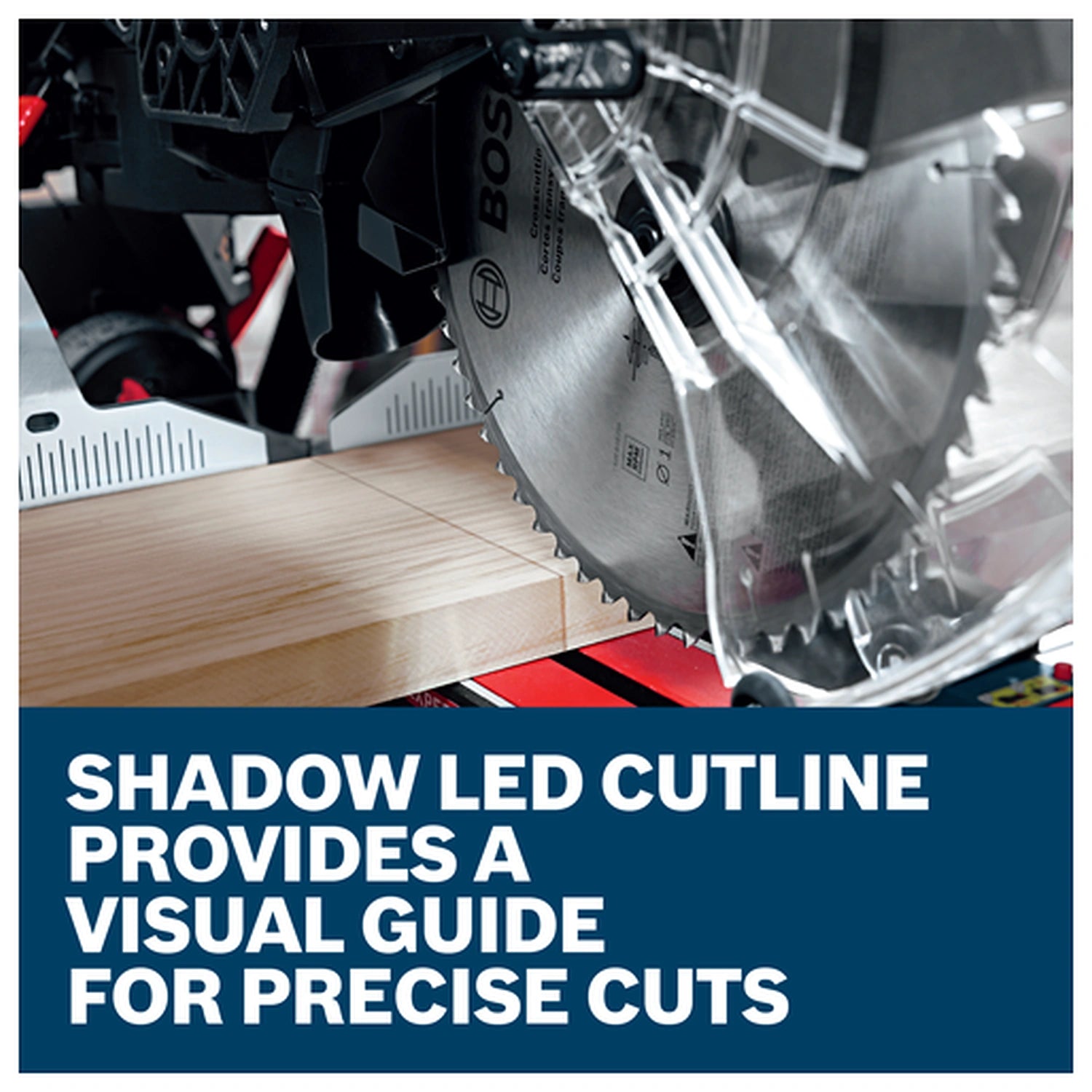

• Shadow LED Cutline provides an accurate cutting guide without manual adjustment
• Preset bevel stops allow fast and accurate angle changes
• Integrated base extensions provide increased material support
• Built-in length stops improve speed and accuracy for repetitive cuts
• Cam-lock mitre system allows quick and secure angle adjustments
• Enhanced dust management with a large dust chute helps keep the work area cleaner
• Electric motor brake provides fast blade stopping for increased safety

TECHNICAL SPECIFICATIONS:

• Motor: 15 Amp Corded
• Blade Diameter: 12 inch
• No Load Speed: 4,000 RPM
• Bevel Range: 47 degrees left / 47 degrees right
• Bevel Stops: 0 degrees, 33.9 degrees, 45 degrees, 47 degrees (left/right)
• Miter Range: 52 degrees left / 60 degrees right
• Miter Detents: 0 degrees, 15 degrees, 22.5 degrees, 31.6 degrees, 45 degrees (left/right), 60 degrees (right)
• Maximum Crosscut at 0 Degree Miter / 0 Degree Bevel: 4-1/8 inch x 13-7/16 inch
• Maximum Crosscut at 45 Degree Miter / 0 Degree Bevel: 4-1/8 inch x 9-7/16 inch
• Maximum Base Molding Capacity Against Fence: 7 inch
• Maximum Crown Molding Capacity (38 Degree Spring): 6-3/4 inch
• Maximum Crown Molding Capacity (45 Degree Spring): 7-1/2 inch
• Dimensions: 33.3 inch L x 26 inch W x 29.1 inch H
