Bosch MRC23EVSK 2.3 HP Electronic Modular Router System

This 2.3 HP Electronic Modular Router System is an advanced setup that provides a fixed base and a plunge base for the MR23EVS router. This system allows for outstanding operator control with the trigger-control system that has a power switch in both the plunge-base's and the fixed-base's handle. The plunge base's Afterlock microfine bit-depth adjustment at any plunge setting allows for precision with an adjustable turret stop making it easy to set any cumulative depth. With a smooth plunge action and a spring-lock plunge lever, this router gets accurate results. The fixed base has microfine bit-depth adjustment with a continuous depth range of 1-5/8in allowing for accurate and fast changes while its precision-centring design allows the bit to be centred with the sub-base or optional template guides.

FEATURES:

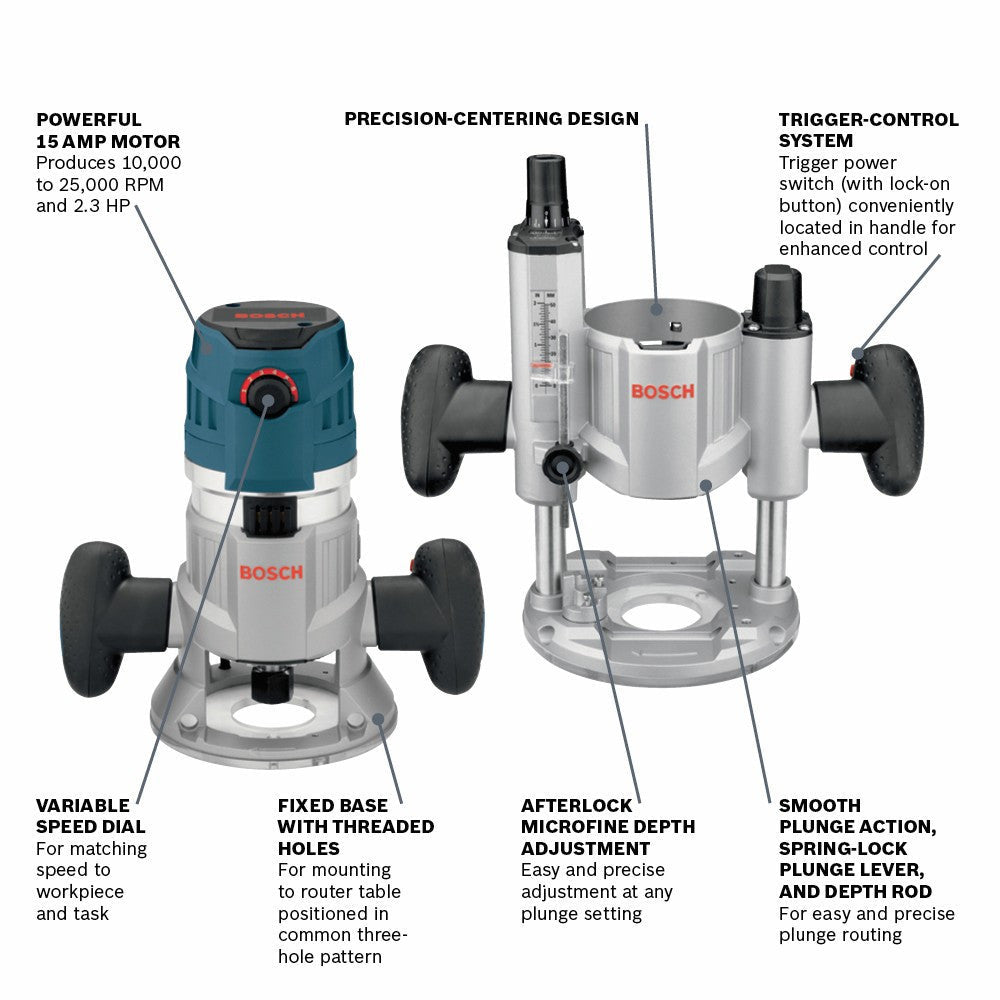

• Powerful 15 amp motor equivalent to 2.3 HP delivers the power to meet the toughest applications
• Variable speed control feature enables bit speed between 10000 - 25000 RPM to match the speed to the task applications
• Soft-starting motor features circuitry to reduce start-up torque protecting the motor and prolonging life
• Ergonomically contoured soft grip handles for enhanced control and comfort
• Trigger-style power switch located in handle for enhanced control and maneuverability
• Versatile fixed-base depth adjustment features 1-5/8in continuous microfine adjustment range
• After locking the plunge-base depth adjustment for easy precise adjustments at any plunge setting
• Precision-centering design ensures visibility making it easy to keep a bit on the cutline
• On-board always-on LED lighting for enhanced visibility in the bit area
• Two-stage quick clamp system offers fast and easy tool-free base conversion
• Constant speed control function maintains constant speed while under heavy load
• Fixed base has a threaded 3-hole pattern for mounting to the router table with a system for adjusting bit height from above a router table (table sold separately)

SPECIFICATIONS:

• Power Source: 15.0 Amp
• Accessory Connector Type:

  • 1/4in Collet chuck
  • 1/2in Collet chuck
• Power:

  • RPM: 10000 - 25000
• Cutting Depth:

  • Fixed base: 1-5/8 in
  • Plunge base: 3 in
• Weight: 12.6 lbs

INCLUDES:

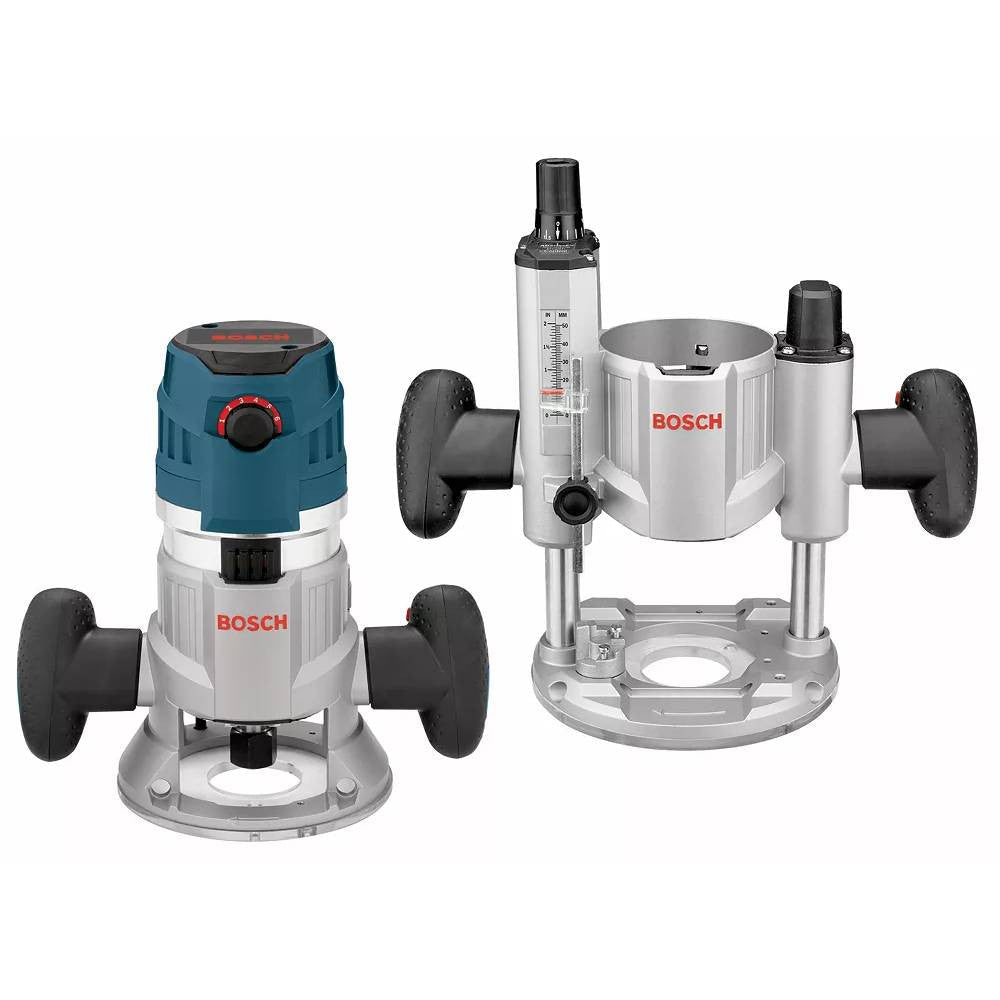

• MRC23EVS 2.3 HP Electronic Modular Router
• Fixed Base
• Plunge base
• 1/4in Collet Chuck
• 1/2in Collet Chuck
• Shaft Wrench
• Collet Nut Wrench
• T-Handle Hex Height Adjustment Wrench
• (3) 10-24 Screws for Table Mounting
• Rugged Carrying Case
